Faxing Instructions

Faxing from a Xerox Altalink C8035

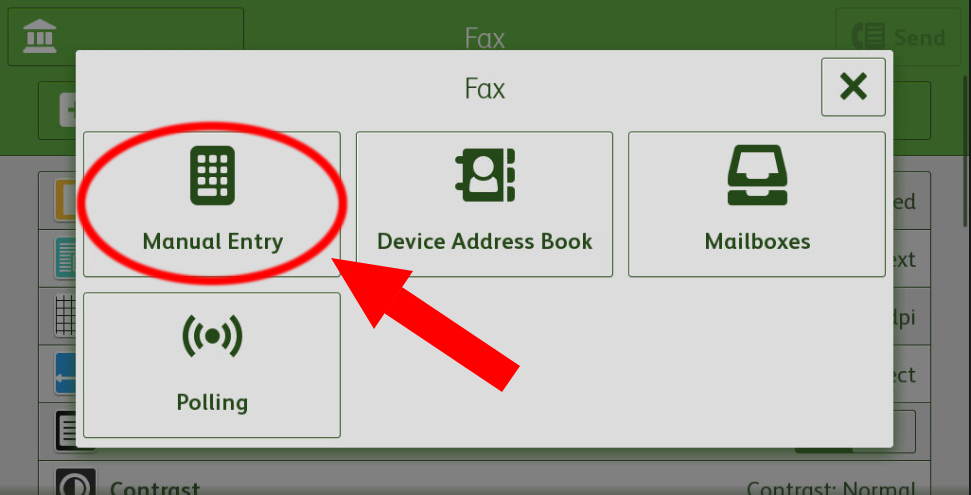

Select “Manual Entry” to enter a fax number Image showing the Manual Entry on-screen button circled in red with a red arrow pointing at it

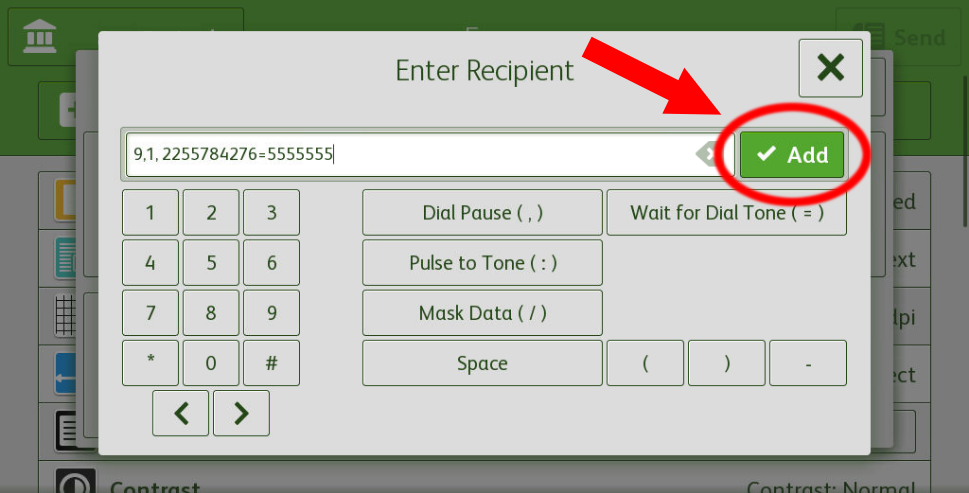

Enter the fax number using the onscreen numbers then press “Add” to submit the entry Image showing the manual fax number entry form, a fax number is entered in manual entry text field, the Add button is circled in red with a red arrow pointing at it.

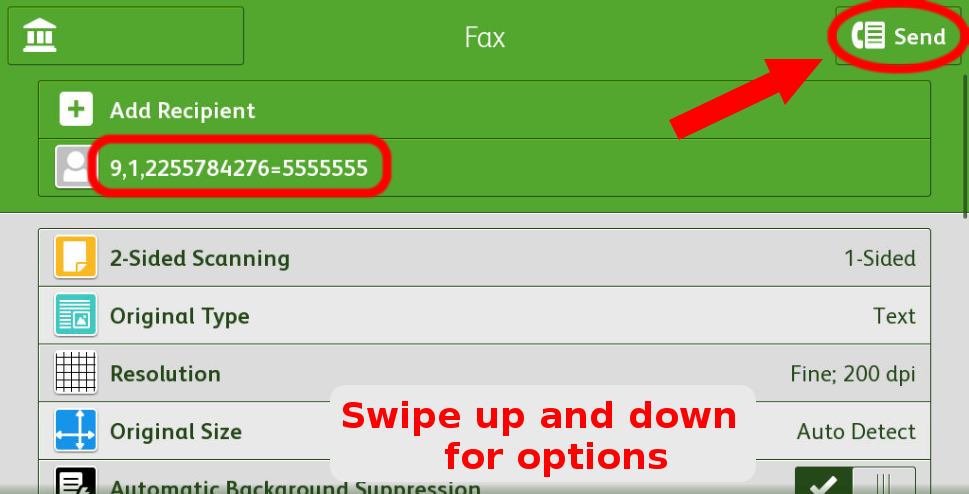

Select other options by swiping up and down on the screen. When ready to fax, press the “Send” button at the top-right Image showing fax options screen. Fax number has been added as a recipient at the top and has a red circle around it. The text, Swipe up and down for options, is in red text at the bottom. The on-screen Send button is circled in red with a red arrow pointing at it.





The fax will begin with an audible dial. If the fax fails, a document will print after 1 – 2 minutes detailing the reason for the failure.





Fax Number notes:


  • On-Campus:   Enter “8” followed by the 4-digit extension:
    8 XXXX

  • Off-Campus:  Enter “9” followed by the 7-digit number:
    9 XXX XXXX

  • Long Distance:  Enter “9 1” followed by the 10-digit area code and phone number, followed by a "Wait for dialtone" character (an = sign), followed by your long distance billing code. (Toll-Free numbers do not require a long distance code):
    9 1 XXX XXX XXXX = LLLLLLL
    9 1 8XX XXX XXXX (Toll Free)

  • International:  Enter “9 011” followed by the country code, followed by any required area code, followed by the international phone number, followed by a "Wait for dialtone" character (an = sign), followed by your long distance billing code.
    9 011 CCC XXX XXXX XXXX = LLLLLLL





What is “Wait for dialtone?”

In dialing a long distance number, there is a variable-time delay between dialing the number and the tone asking for a long distance code.

This command tells the machine, at that point in dialing the number, to wait until the machine detects a tone and then to proceed dialing the number.

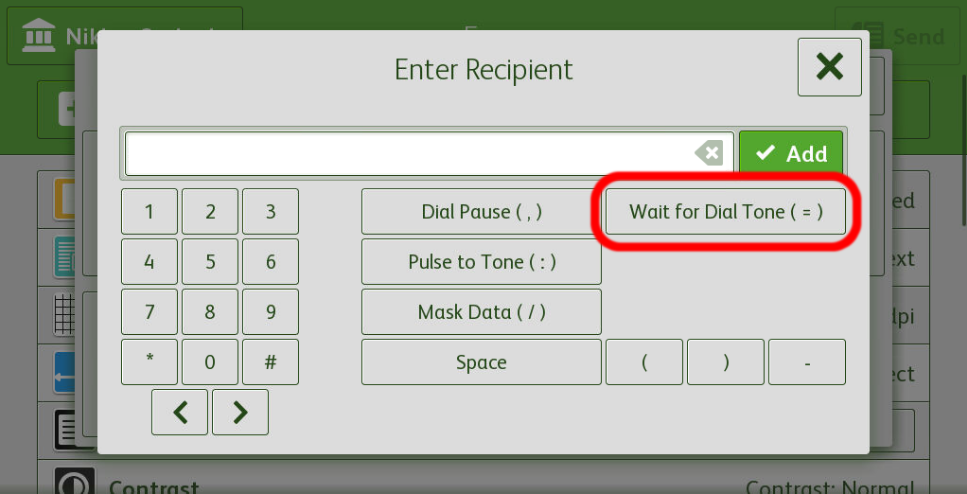

Image showing the manual fax number entry form. The Wait for Dial Tone on-screen button is circled in red.
